New Jersey Excavator Parts - Excavators are important machines that are used in a variety of industries. They are extremely efficient in moving and transporting heavy loads within minutes. This industrial equipment is used in many industries including road work, bridge building, landscaping, construction and architecture. Also called diggers, 360-degree excavators and mechanical shovels, tracked models are sometimes referred to as trackhoes. Excavators can be equipped with numerous attachments to facilitate a range of jobs including grading and landscaping, demolition with a cutter, breaker and hydraulic saw attachments, material handling, river dredging, forestry, construction, open-pit mining, regular mining, driving piles when working with a pile driver, digging holes, foundations and trenches, snow removal with snowplow and snowblower attachments, drilling for rock blasting and footings with hydraulic auger attachment or drill, mulching for forestry and more.

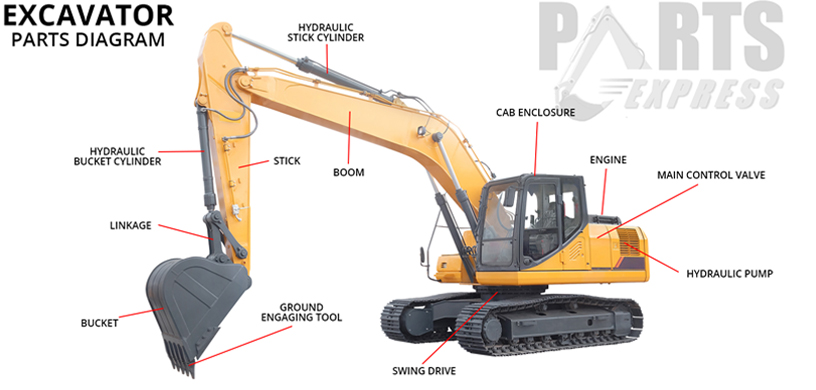

An excavator is a popular kind of heavy construction equipment made up of particular parts. The dipper, boom, cab and bucket are situated on top of a rotating platform called the house. The house is situated on top of an undercarriage that has tracks or wheels. Excavators have evolved from steam shovels of yesteryear. The hydraulic excavating models rely on hydraulic fluid to finish all movement and functions. The linear actuation on the hydraulic cylinders makes them differ from cable-operated excavators that rely on winches or steel ropes.
Excavator Models
Hydraulic excavators come in a variety of different models and sizes. Tiny and compact models weigh approximately 2k lbs. while the largest models weigh in around 2m lbs.
Three hydraulic pumps are utilized by modern hydraulic models instead of relying on mechanical drivetrain configurations. Two pumps deliver high-pressure oil for the accessories, swing motor, track motors and arms. The third low-pressure pump supplies power for pilot control of the spool valves. This setup enables less physical effort required for the operating controls. The three excavator pumps typically consist of a gear pump and two variable displacement piston pumps. These pumps are arranged in the excavator in a variety of formats depending on different manufacturer models.
The House and the Undercarriage
The house and the undercarriage make up the two main portions of the machine. The undercarriage is comprised of the tracks, track frame, the gears and the hydraulic motor that operates the blade tracks. The house features the engine, hydraulic oil tanks fuel, counterweight and the operator cab. A center pin connects the undercarriage to the house. A hydraulic swivel located at the pin axis supplies high-pressure oils to the hydraulic motors’ tracks. This design allows the excavator to move freely in 360 degrees.
The house is available in a variety of configurations and is attached to the main boom. Mono booms are among the most common. This type features zero movement besides straight up and down. The knuckle boom enables the machine to move right and left in line. There is a hinge option located at the booms’ base to let it pivot up to 180 degrees independently to the house, usually on available on compact excavators. Triple articulated booms are also on the market.
A dipper arm is attached to the end of the boom. This apparatus provides the required digging force to drag the bucket through the ground. The length of the stick is optional depending on whether breakout power or reach is necessary. Longer stick models are utilized for reach applications, while shorter sticks are used for breakout power situations. At the end of the stick, the bucket is attached. A mud bucket describes a large, wide capacity bucket that has a straight cutting edge used for leveling and cleanup or wherever teeth are not needed. General-purpose bucket designs commonly are used to break up hard ground and difficult rocks, with their side cutters and hardened teeth that are typically smaller and stronger. There are many different buckets of varying sizes for different applications. Numerous attachments can be used for ripping, lifting, cutting, boring, crushing, and more.
Before the 1990s, the excavating machines were outfitted with a conventional counterweight that was located at the back of the equipment. This was in place to add more lifting capacity and digging force. As one can imagine, this became cumbersome when working within confined spaces. The counterweight of modern machines today is designed to stay in the width of the tracks making it much safer and more user-friendly within confined spaces.
In excavators, there are two main kinds of control configuration to operate the bucket and the boom called the ISO and the SAE. These types of control configuration disperse the four top digging controls between two different x-y joysticks, enabling an experienced operator to have simultaneous control of all four functions. Certain excavators have switches to allow the operator to decide on which configuration they want to use during operation.
Hydraulic excavator jobs have surpassed bucket and excavation tasks. There are many hydraulic-powered excavator attachments including a breaker, a grapple and an auger. Some models come with a quick coupler feature to increase efficiency while simplifying the attachment mounting process. Excavators often work beside loaders and bulldozers. Most of the compact-sized excavator models have wheels and a backfill or dozer blade. This horizontal blade attaches to the undercarriage. It is used for pushing and leveling material back into a hole.
8 Main Excavator Types
There are eight main kinds of excavators including the dragline, long reach, crawler, bucket wheel, backhoe, steam shovel, skid steer and suction.
Steam Shovel
One of the first kinds of excavators were steam shovels. They relied on steam energy while today’s models use electric or diesel motors. Steam shovels are similar to backhoes with the bucket or shovel facing away from the machine instead of facing it. This enables the operator to shove dirt away from the machine instead of pulling earth towards it. Steam shovels are used for digging around objects that may interfere with a typical backhoe.
Backhoe
Backhoes are one of the most popular kinds of excavators. Backhoes contain a large bucket that extends from a boom or an arm and a wheeled track base. The bucket faces the operator cab and enables the operator to scoop earth toward the equipment. These machines come in multiple sizes including compact residential models suitable for backyard applications up to heavy-duty versions used in bridge building and dredging waterways. The more compact units are ideal for accessing smaller spaces and this offers a 200-degree swiveling range for digging close to the machine.
Dragline Excavator
A dragline excavator resembles a backhoe and includes various cables and lines to facilitate the bucket pulling motion. The dragline allows operators to reach farther and dig deeper in comparison to a regular backhoe. The boom and cables allow users to work over unstable or wet ground and where a traditional backhoe would not work.
Skid Steer Excavators
Skid steers are designed with their booms and buckets facing away from the operator. This engineering enables attachments to reach over the cab instead of around the cab. This design makes skid steers useful for negotiating tight turns and narrow locations. These machines often complete residential jobs such a digging pools, site cleaning and working in limited surroundings while removing debris.
Suction Excavator
Resembling a modern dump truck, these special excavators enable operators to use a large hose and vacuum technology to suck rocks and earth out of the ground. The material is transferred back to the truck. This machine makes it safer to dig around underground pipes and equipment compared to regular backhoes.
Crawler Excavators
Crawlers don’t rely on wheels, they run on two tracks. They are popular in the mining and construction industries. Crawlers are also known as compact excavators. They lift heavy debris and soil by using hydraulic power components. The chain wheel configuration allows the machine to traverse down hills with less risk, making them an ideal candidate for hilly locations and tricky terrain. Crawlers are slower in comparison to other models but offer better stability, flexibility and balance.
Long Reach Excavators
The long reach excavator showcases lengthier boom and arm components. They are ideal for hard-to-reach areas. This machine offers over one hundred feet of horizontal reach. These excavators are used in demolition applications and working over a body of water. Numerous attachments can be attached to the arm to complete jobs including shearing, crushing and cutting.
Bucket Wheel Excavator
These excavators function with a large front wheel with built-in buckets and shovels. Dirt and rocks are scooped up within the buckets as the wheel rotates. Items are transferred onto a conveyor belt that functions as an important part of the machine. The belt carries the material into a bin that may be part of the model or separate.
